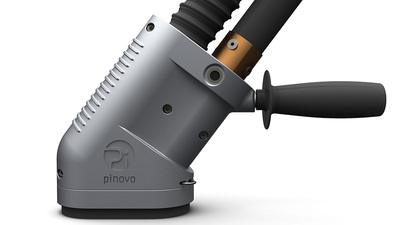

PiConnect™
The PiConnect™ is a compact, closed-loop vacuum blasting tool designed for safe and dust-free surface preparation in explosive atmospheres (ATEX zones). Ideal for spot and sweep blasting, it utilizes interchangeable adapter technology to handle a variety of surface geometries efficiently.
Additional information
| Dimensions | 124 mm (L) x 176 mm (W) x 62 mm (H) |
|---|---|
| Weight | 1.0 kg (excluding hoses and adapter) |
| Nozzle type | 6.4 mm Venturi nozzle |
| Noise level | LpA ≤ 84 dB at 1 m distance |
| Air pressure requirements | Minimum 8 bar, 10 m³/h, dry air |
| Vibration | Low vibration levels |
| ATEX compliance | II 2G IIA T4 |
| Cleaning capacity | Up to 2.5 m²/hour, depending on surface condition and coating |
| Blast width | 25 mm |
| Surface roughness | Up to Rz 120 µm, depending on air pressure, grit size, and surface |
| Surface cleanliness | Achieves up to SA 3 / SSPC-SP-5 / NACE No. 1 |
| Dust emission | Zero emissions into the environment due to the closed-loop system |
| Waste management | Integrated closed-loop waste handling minimizes disposal |
| Personal protective equipment (PPE) | Minimal PPE requirements |
Accessories:
The PiConnect™ supports a wide range of adapters for various surface geometries. Additionally, the PiStick™ accessory offers ergonomic support, especially useful for overhead work during extended operations.
Applications:
This tool is ideal for industries requiring precise, clean, and environmentally friendly surface preparation, ensuring optimal results in confined or sensitive areas.
The PiConnect™ is your reliable partner for efficient, safe, and sustainable blasting in challenging environments.
