Suitable for:
PiWalk™

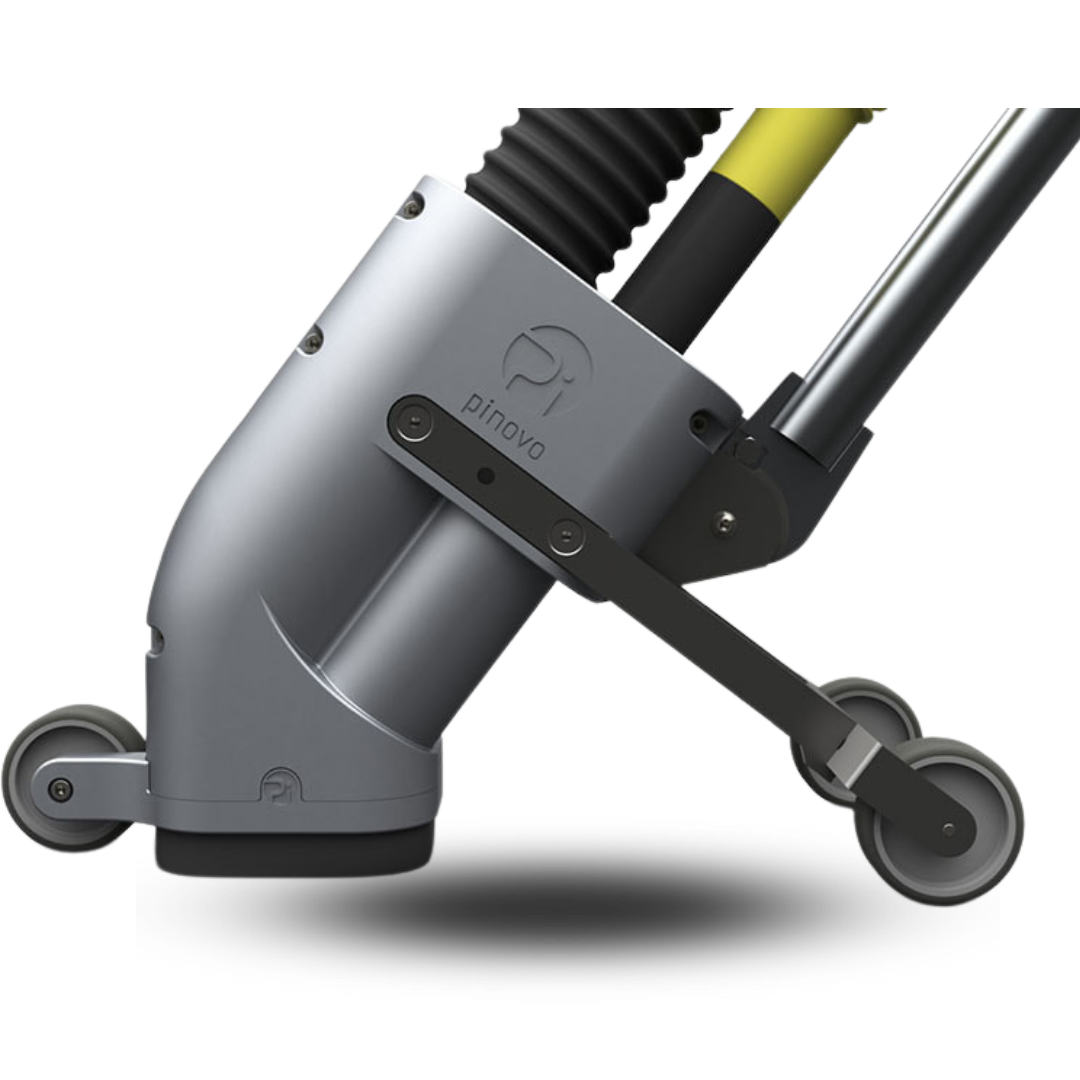

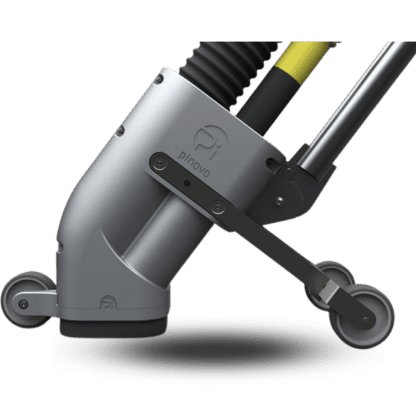

The PiWalk™ from Pinovo vacuum blasting machine is a walk-behind, closed-loop grit blasting tool designed for use with the Pinovo® closed-loop blasting systems PiSys™ 100 and PiSys™ 1000. It provides efficient and dust-free surface preparation with minimal cleanup required, leaving surfaces ready for painting or post-treatment. Its low noise operation and ability to reuse abrasive materials up to 15 times make it an eco-friendly and cost-effective solution for surface preparation tasks.
Additional information
| Dimensions | 501 mm x 248 mm x 350 mm |
|---|---|
| Nozzle type | 9.5 mm fan nozzle |
| Compressed air usage | 9 Nm³/min – 3.5 Nm³/min (blasting); 5.5 Nm³/min (vacuum recovery) |
| Grit consumption | 7 kg/m² (varies by surface/coating conditions) |
| Blast width | 70 mm |
| Capacity | Up to 6 m²/hour (depending on surface/coating) |
| Material | Brown Fused Aluminum Oxide (ISO 11126-7) |
| Hardness | Mohs ≥9.0 |
| Grit size | F 16 and smaller |
| Primary preparation | Up to SA 3 / SSPC-SP-5 / NACE No. 1 |
| Secondary preparation | Up to P SA 3 (with feathered edges) |
| Anchor profile | Up to Rz 110 µm (depending on blast pressure, grit size, and surface) |
| Noise level | LpA ≤ 90 dB at 1m distance (NS 4815-2:2006) |
| Vibration | Zero vibration |
| PPE Requirements | Minimum requirements |
| Conformity | II 2G IIA T4 |
| Contamination | Zero emissions to surroundings |
| Waste management | Closed-loop waste management system |
